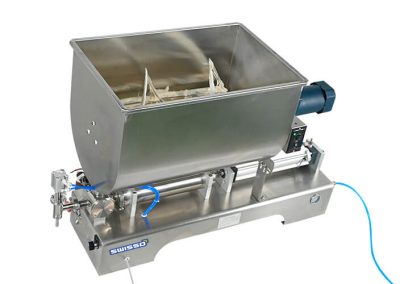

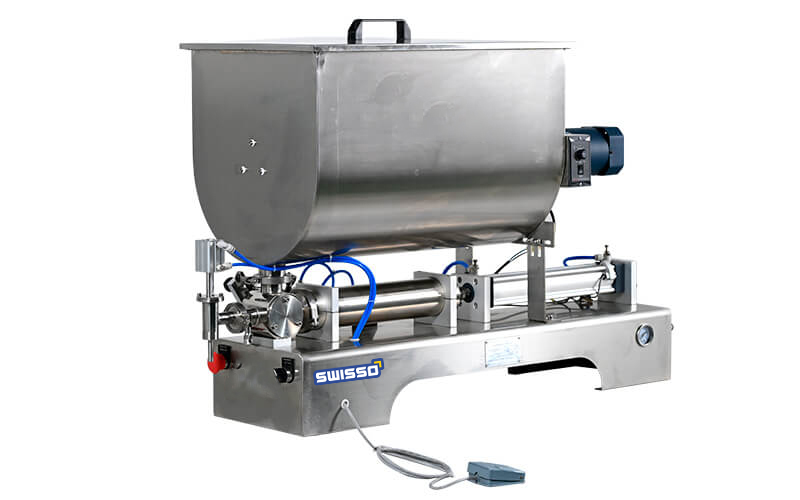

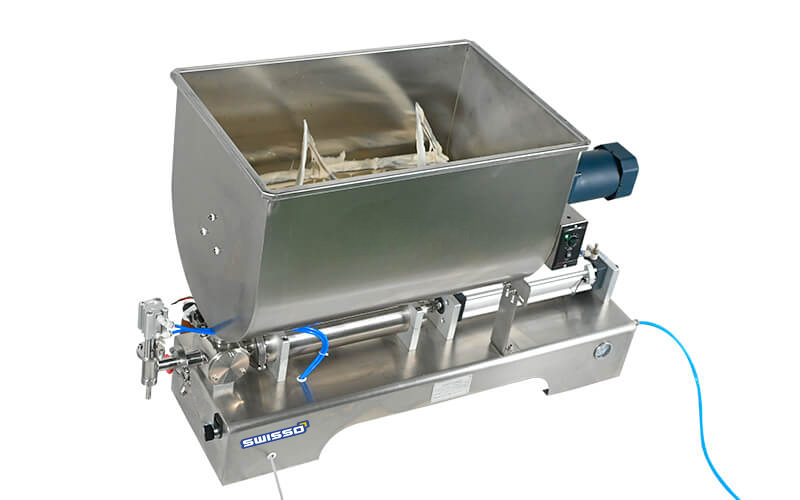

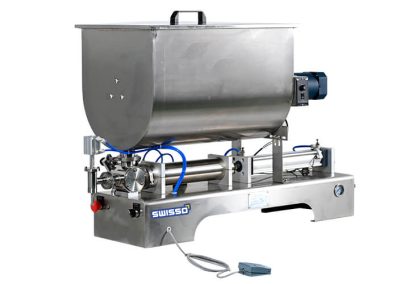

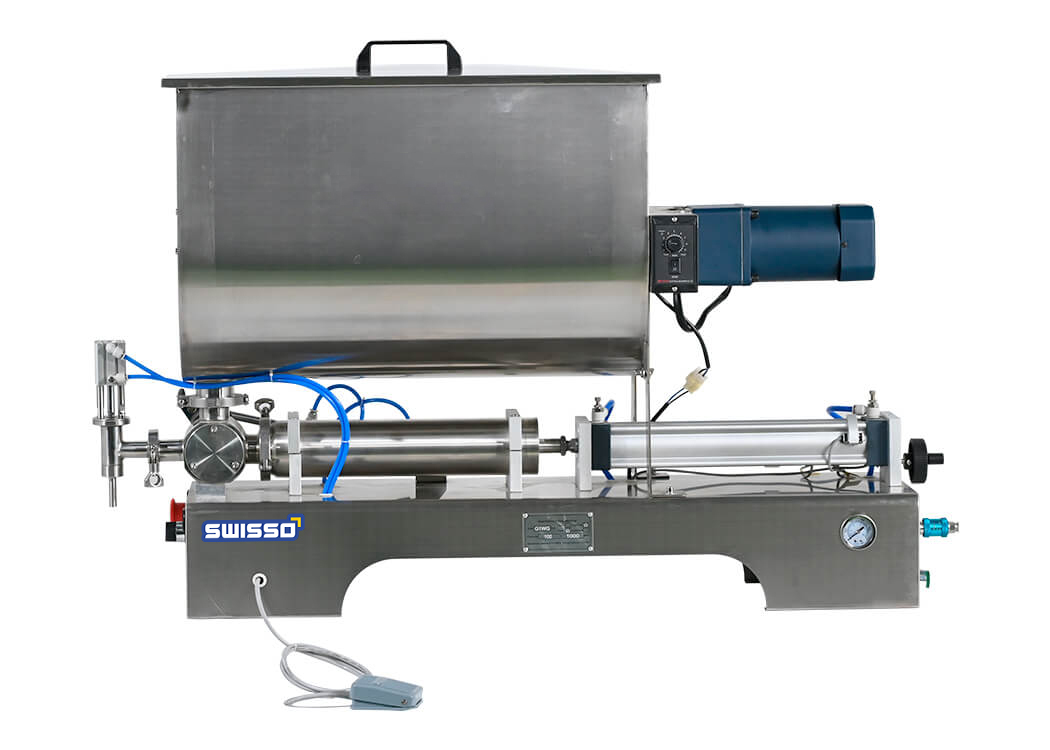

Semi Automatic Piston Paste Filling Machine With Stirrer Tank
A pure experience – Get to know our semi-automatic machine.
10 ML to 1000 ML
Filling Range
0.5 +/-
Filling Accuracy
8-9 Bottles
Filling Speed Per Min.
SS-304
Machine Construction
A semi-automatic piston paste filling machine with a stirrer tank is a versatile solution for filling pouches, bottles and many more with viscous substances such as thick pastes, mayonnaise, fruit pulp, hair dye, pickle, ginger garlic paste, toothpaste, creams and many more types od pastes. This machine integrates a piston filling mechanism with a stirrer tank, which ensures proper mixing and consistency of the product before dispensing. Operators manually position containers and initiate the filling process, while the machine automatically dispenses the desired amount of product with precision and accuracy. The stirrer tank feature helps prevent product separation and ensures uniform filling. This type of machine is commonly used in industries such as food, cosmetics, pharmaceuticals, chemicals, adhesive and more industries, offering efficient and reliable filling operations.
Suitable Products for These Machines

Peanut Butter

Mayonnaise

Fruit Pulp

Hair Dye

Ginger Garlic Paste

Toothpaste
And Many More Products
Full Specification And Model Details
PARTICULAR |
SEMI AUTOMATIC PISTON
|
| FILLING RANGE | 10 ML – 1000 ML |
| AIR PRESSURE | 0.4 – 0.6 MPA |
| FILLING SPEED | 08 – 09 BOTTLES/MIN |
| FILLING ACCURACY | 0.5 + /- |
| CONTROL MODE | MANUAL / AUTO |
| HOPPER CAPACITY | 30 KG AS PER PRODUCT |
| MACHINE CONSTRUCTION | SS-304 |
| POWER SUPPLY | 230V /50 Hz |
| K.W | 300 W |
| MACHINE WEIGHT | Approx 49.00 KG |
Frequently Asked Questions (F.A.Q.s)
1. What is the purpose of the stirrer tank in this machine?
- The stirrer tank ensures that the paste remains homogeneous by continuously mixing the paste during the filling process, preventing separation or settling of ingredients.
2. Does this machine provide both manual and automatic modes?
- Yes, this machine does provide both modes, manual and automatic
3. What is the capacity of the stirrer tank?
-
The stirrer tank has a capacity of 30 kg.
4. What types of containers can this machine fill?
-
This machine can fill pouches and bottles.
5. What kind of maintenance is required for the machine?
-
This machine requires no maintenance.
